HOLTEK New BC3602 Sub-1GHz FSK/GFSK Low Current RF Transceiver IC


【CTIMES/SmartAuto 報導】   2019年09月17日 星期二

瀏覽人次:【1183】

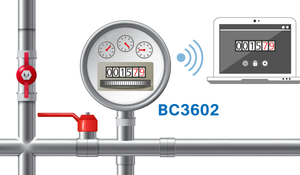

Holtek announced the release of its new low current bidirectional wireless FSK/GFSK transceiver IC, the BC3602. The device, which includes an integrated high precision, low power oscillator for WOT (Wake-on-TX) and WOR (Wake-on-RX) functions, is suitable for battery or IoT applications that require low power consumption, such as smart homes, intelligent security products, remote meter reading, industrial/agricultural controllers and many other wireless bidirectional communication products.

/news/2019/09/17/2056489180S.jpg

This device operates in the 315/433/470/868/915MHz license-free ISM bands and includes a fully integrated high power programmable amplifier, a frequency synthesizer and a digital demodulation function, etc., greatly simplifying the overall circuit design. With regards to standards, the device RF characteristics are compliant with ETSI/FCC specifications.

The device has an operating voltage ranging from 1.9V to 3.6V and a programmable transmitting power up to +13dBm. Its receiving sensitivity can be up to -120dBm at a data rate of 2kbps. It has a receiving current as low as 4.2mA at 433MHz and a transmission rate of up to 250kbps. The device also includes an ATR (Auto-Transmit-Receive) function.

The BC3602 includes an SPI control interface and meets with the industrial specification operating temperature of -40°C~85°C. It is supplied in a small 24-pin QFN (3mm×3mm) package type which will meet the requirements of low profile wireless product and module designs.
